500-Kilogram Material Tensile Machine Industrial Grade Material Design High Precision
Product Description

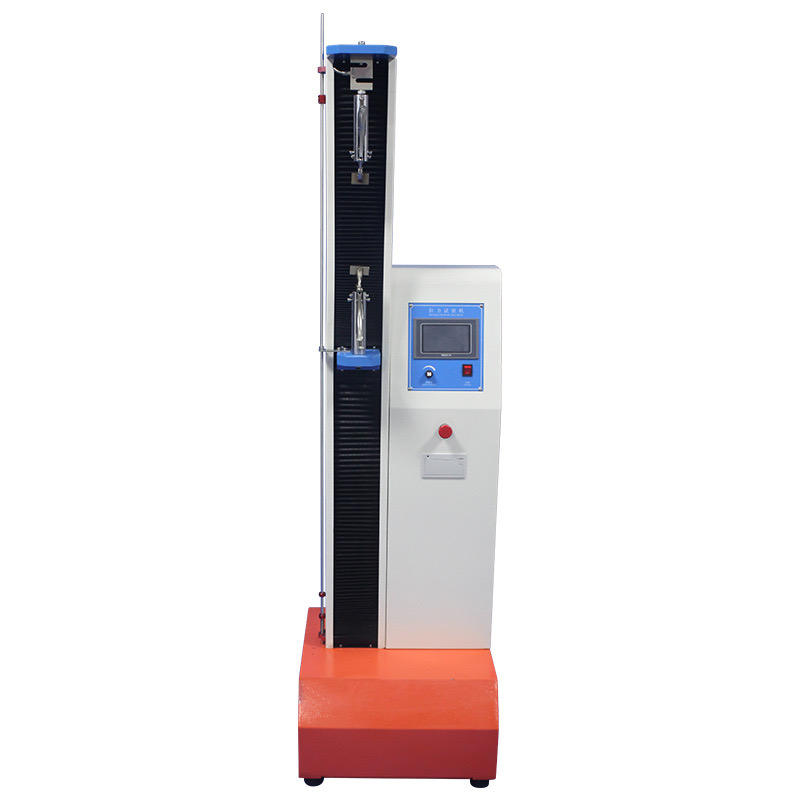

5kN Single Column Tensile Testing Machine
Description of Electronic Tensile Testing Machine
The 500kg tensile testing machine is a versatile and precision-engineered instrument designed for evaluating the mechanical properties of a wide range of materials, including metals, plastics, rubber, textiles, composites, and various industrial components. Built with a reinforced steel frame and a rigid loading structure, the system ensures outstanding stability during testing, minimizing vibration and deformation to deliver highly repeatable results. Equipped with an advanced high-resolution load cell, the machine provides accurate measurement of tensile force up to 500 kilograms, making it ideal for laboratory research, quality assurance, and production monitoring applications.
This type is mainly for the tensile strength testing of insulator.
Features
-
High-strength structural frame: Fabricated from durable alloy steel to ensure stability and minimal deflection under load.
-
High-precision load cell: Provides accurate force measurement with excellent repeatability across the 0–500kg range.
-
Rapid fixture replacement: Tool-free grip installation for efficient setup and quick switching between specimen types.
-
Quality-assured manufacturing: Machine is calibrated and tested to meet international standards before shipment.
Testing Standard: GB/T16491-1996
Technical Parameters
| Capacity | 500kg(5kN) |
| Force measurement accuracy | Within ±0.5% of the displayed value |
| Display method | Touch Screen |
| Unit | Kg, lb, N |
| Data sampling frequency | 200times/sec |
| Test machine resolution | Maximum load of 1/±25,000 yards, inside and outside without splitting, and constant resolution throughout |
| Load sensors | Basic configuration: pull and pressure sensors (maximum load) |
| Effective test width | 150mm |
| Effective stretching of space | 1200mm |
| Testing speed range | 1-100mm/min stepless speed control and 5-speed fixed (special test speed can be customized according to customer requirements) |
| Displacement measurement accuracy | Within ±0.5% of the displayed value |
| Breakpoint ratio setting | 0～99%, Users can set the appropriate breakage stop time according to different materials |
| Test bench safety device | Up and down travel limiter |
| Overload protection | Automatically protected when the maximum load is exceeded by 10% |
| Clamp | One set |
| Dimension | 550×400×1820mm |
| Main machine weight | About 100 Kgs |
| Power supply | 220V/50Hz |
| Compatible Software | Can provided according customers payment |
| Installation Instruction | Videos provided |
| Connect way | USB data cable connection |
What materials can be tested with a 500 kg tensile machine
A 500 kg tensile tester is suitable for low- to medium-strength materials such as rubber plastics thin metal sheets textiles tapes composites and medical consumables. For higher-strength materials larger load cells or custom grips can be selected.
How is accuracy and stability ensured
The machine uses a high-precision load cell a linear encoder and a closed-loop control system. Accuracy typically reaches ±0.5% or even ±0.3%. The rigid steel frame minimizes deformation and ensures stable and repeatable test results.
How is accuracy and stability ensured
The machine uses a high-precision load cell a linear encoder and a closed-loop control system. Accuracy typically reaches ±0.5% or even ±0.3%. The rigid steel frame minimizes deformation and ensures stable and repeatable test results.
What analysis features does the software provide
The software generates force-displacement and stress-strain curves automatically calculates tensile strength elongation modulus and other parameters supports data export batch report creation custom test methods and multilingual interfaces.
Are the grips universal Can they be customized
Standard tensile and compression grips support most common materials. Custom grips such as pneumatic wedge grips peel test fixtures or ring grips can be made to suit unique sample shapes and ensure accurate results.
Does the machine require regular calibration
Annual calibration of force and displacement is recommended. For laboratories issuing formal reports certified third-party calibration can be provided along with traceable certificates.
What safety features are included
The tester includes upper and lower limit protection overload protection automatic stop at specimen break and an emergency stop button to ensure operator and sample safety.
How about warranty and after-sales service
The machine typically has a one- to two-year warranty with extended coverage for key components. Lifetime technical support is provided including remote diagnostics and on-site service when needed.
