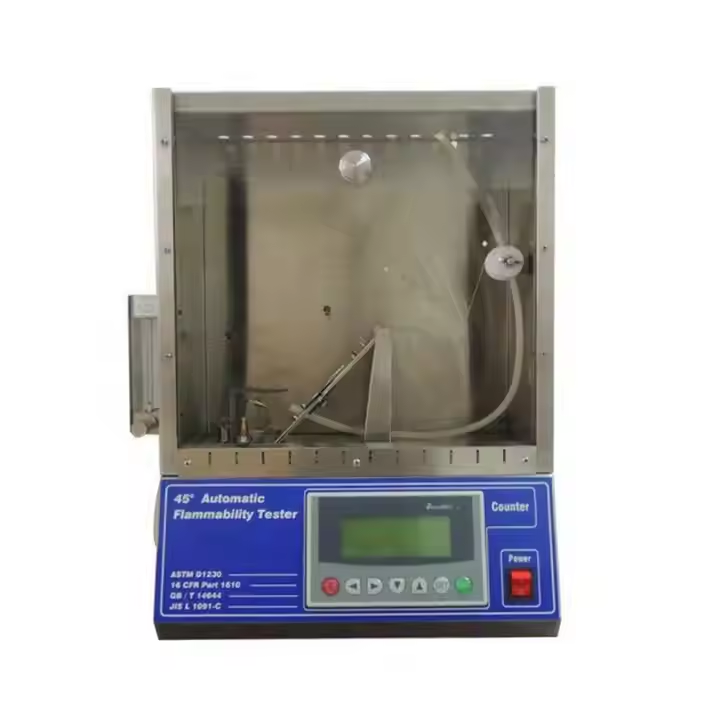

45 Degree Automatic Flammability Test Apparatus

Name: 45 Degree Automatic Flammability Test Apparatus
Brand: YUYANG
Price: 1 USD

45 Degree Automatic Flammability Test Apparatus Manufactures

Brand Name : YUYANG

Model Number : YY123

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : pending

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500

Delivery Time : one week

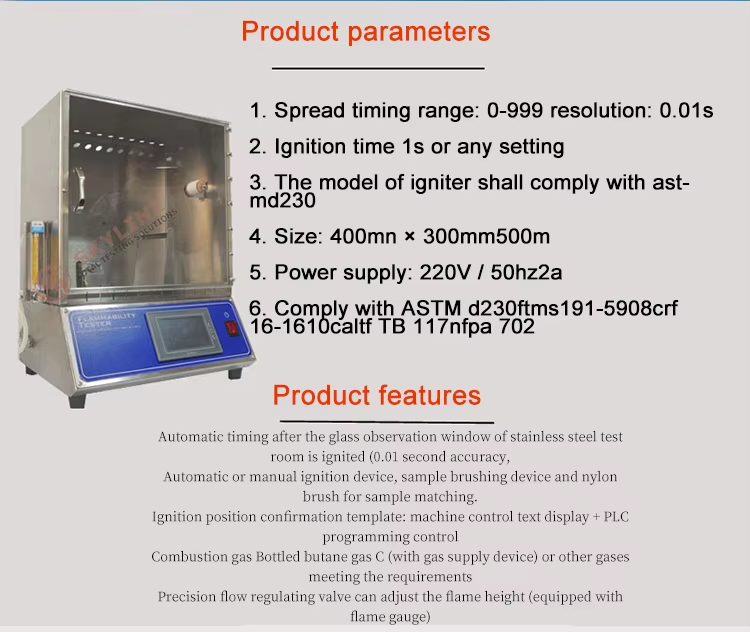

Spread time scope : 0-99.99s

Firing time : 1s or specified

Resolution : 0.01s

Specimens clamp inside dimension : 152×38mm

Flame height : 15.875mm

Dimension : 540×410×300mm(L×W×H).

Power Supply : 220V

Contact Now

YY123 45 Degree Automatic Flammability Test Apparatus

45 Degree Automatic Flammability Test Apparatus

Description:

45 degree flammability tester, check the flammable performance of the textile

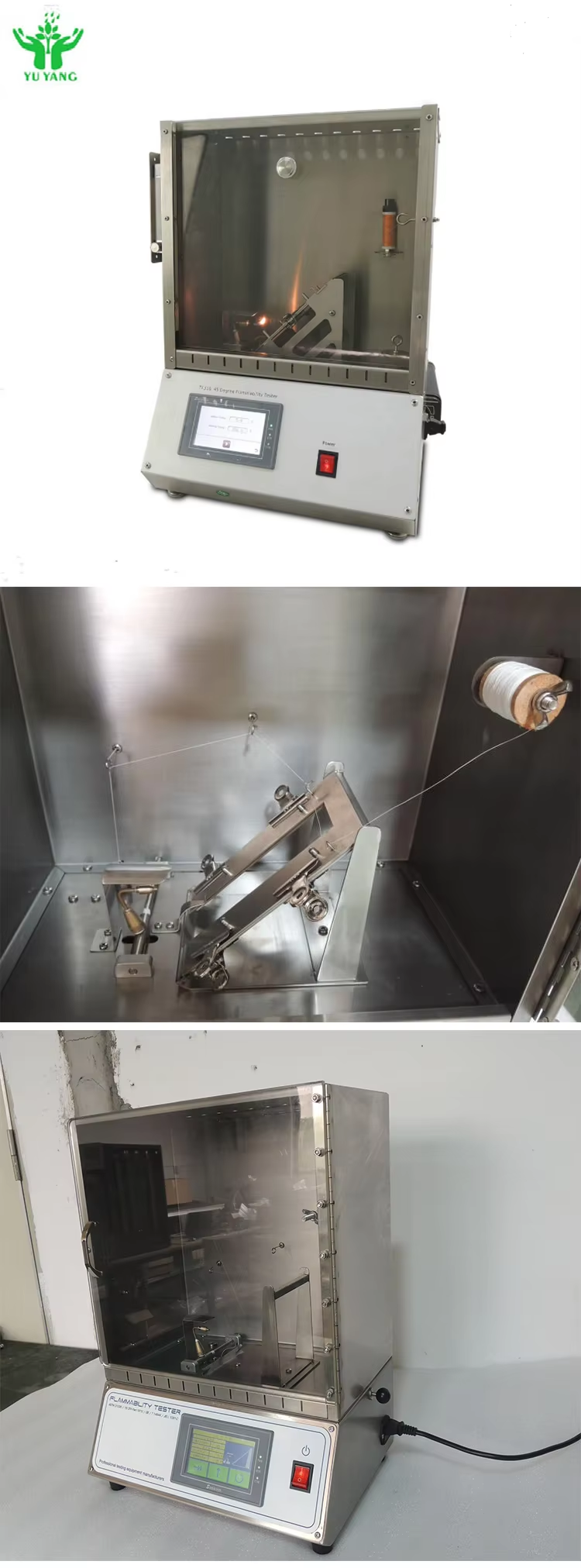

Stainless testing room with glass window, after ignition automatic time (0.01 second precision) automatic or manual ignition.

Principle:

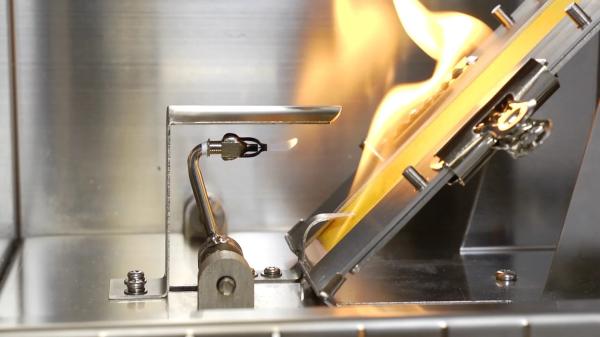

Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.

Standards:

ASTM D 1230
ASTM F963 - ANNEXES A6
16 CFR 1610
CALIF TB 117
GB/T 14644
CAN/CGSB 4.2 No 27.5
