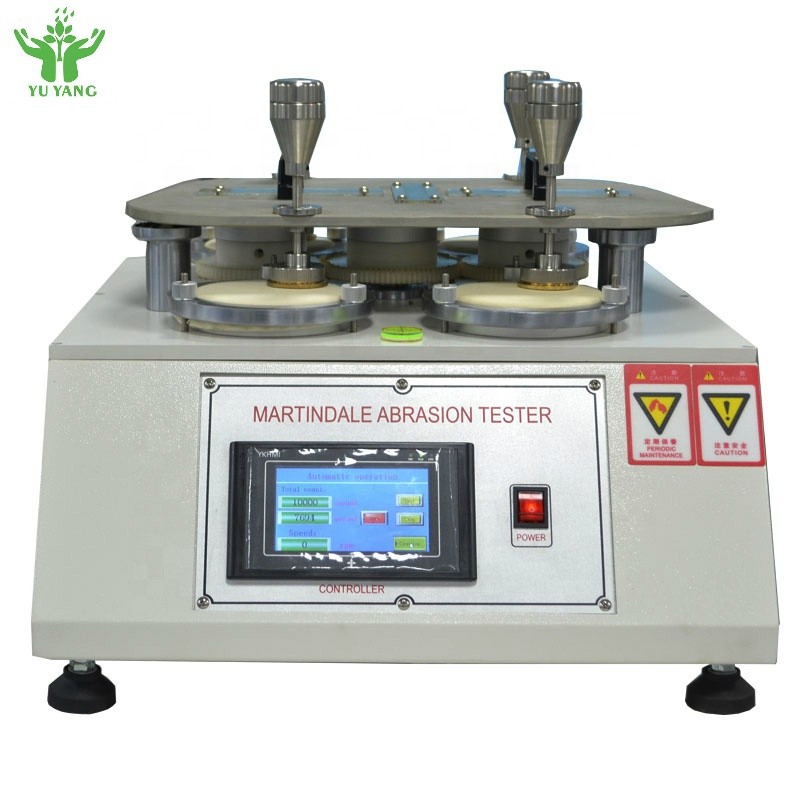

Martindale Abrasion Textile Testing Equipment ISO 12947-2 4 Stations

Name: Martindale Abrasion Textile Testing Equipment ISO 129472 4 Stations
Brand: YUYANG
Price: 1000 USD

Martindale Abrasion Textile Testing Equipment ISO 12947-2 4 Stations Manufactures

Brand Name : YUYANG

Model Number : YY001

Place of Origin : China

MOQ : 1PCS

Price : $1000-$1500

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 7-30 Days

Packaging Details : Wooden Box

Product name : Testing Machine

Usage : Martindale Abrasion And Pilling Tester

Application : Textile

Function : Abrasion And Pilling

Maximum Dynamic Range : 24±0.5mm, 60.5±0.5mm

Gripper : 200 ± 1g

Working Station : 4/6/8

Dimension : 885mm*600mm*410mm(L*W*H)

Contact Now

ISO 12947-2 Martindale Abrasion And Pilling Tester for Textile Resistance Testing Machine

Description:

To determine the abrasion and pilling resistance of all kinds of textile structures.Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. .
 The tester is equipped with electronic preset batch counter, timer and pooled sample clips and load device (compatible with international testing standards)

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)
 Display: LED
 Accumulate count: 1~999999
 Dimensions (L x W x H) 880×600×410mm
 Power supply AC380V, 180W or AC220V, 180W

 Pressurized material weight:
 (a) wear resistance test: clamps component 200 ± 1g, cloth sample hammer 395 ± 2g , furniture decorations specimen hammer 594 ± 2g.
 (b) pilling test: gripper assembly 155 ± 1g, heavy punch 260 ± 1g
 Relative velocity 50 r / min

 Effective friction diameter:
 (a) wear resistance test: φ28.8mm (b) pilling performance test: φ90mm

Advantages:

Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.
Variety of trajectory matching accessories, can adapt to a variety of test methods standard.

Standards:

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO
 12945-2,SATRA TM31,ISO 20344

 Accessories: ballot sheet 1pcs, bowl shape specimen kit 1pcs,O-rings( 4,6,8), Abrasion weights kit(4,6,8), Pilling weights
 kit(4,6,8), power line 1pcs
 Optional purchase consumables: wool fabric, felt, sponge, EMPA, scale, SM50 scales

 Weight: Net weight: 102KG, Gross weight: 124KG
 Plywood box size: 102*87*47cm

Product Tags:

Martindale Abrasion Textile Testing Equipment

4 Stations Textile Testing Equipment

ISO 12947-2 martindale abrasion tester

Martindale Abrasion Textile Testing Equipment ISO 12947-2 4 Stations Images
