Strength Textile Testing Equipment Single Yarn ASTM D2256 ISO2062

Name: Strength Textile Testing Equipment Single Yarn ASTM D2256 ISO2062
Brand: YUYANG
Price: 1000 USD

Strength Textile Testing Equipment Single Yarn ASTM D2256 ISO2062 Manufactures

Brand Name : YUYANG

Model Number : YY031

Place of Origin : China

MOQ : 1PCS

Price : $1000

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 7-30 Days

Packaging Details : Wooden Box

Product Name : Single Yarn Strength Tester

Force Scale : 0-1000cN; 0-3000cN; 0-5000cN

Force Division : 0.5CN; 1CN; 1cN

Precision : <=1 %F.S

Pretension : 0~150cN (adjustable)

Weight : 60kg

Dimensions : 370*450*970mm

Contact Now

Strength Testing Machine ISO2062 Electronic Single Yarn ASTM D2256 Single Yarn Strength Tester

Electronic Single Yarn Strength Tester is suitable for determining the breaking load and extension of single yarns. It does adopt CRE principle and automatically operated with pneumatic/magnetic clamp,provided with scales 0-5000cN force max.

Relevant Standards: GB/T14344 GB/T3916 ISO2062 ASTM D2256

Technical Parameters:

Force scale:0-1000cN; 0-3000cN; 0-5000cN

Force division: 0.5CN; 1CN; 1cN

Precisio:<=1 %F.S

Extention speed:50-1000mm/min (adjustable)

Reverting speed:50-1000mm/min (adjustable)

Extention scale:100mm,250mm,500mm (three selection)

Pretension: 0～150cN (adustable)

Power:AC 220V±10% 50Hz

Dimension: 370*450*970

Weight:60kg

Strength Textile Testing Equipment Single Yarn ASTM D2256 ISO2062

Product Tags:

ISO2062 Textile Testing Equipment

ASTM D2256 Textile Testing Equipment

Single Yarn strength testing machine

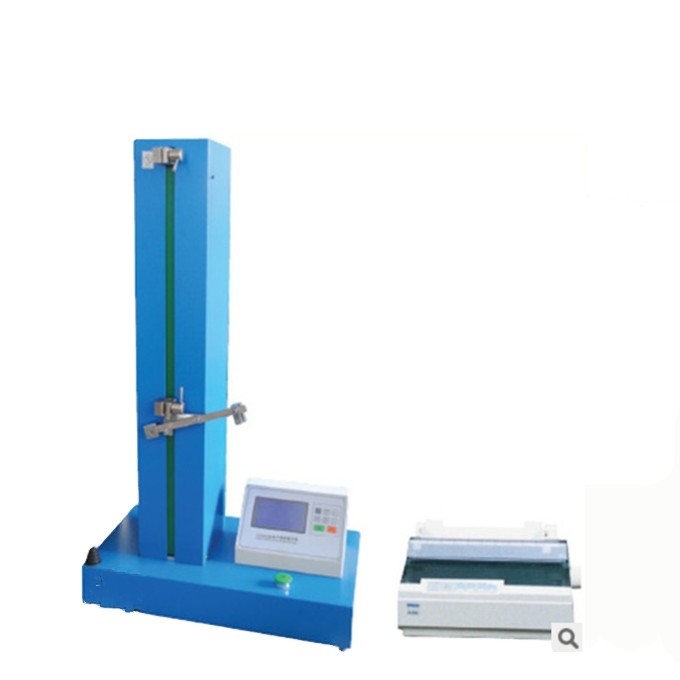

Strength Textile Testing Equipment Single Yarn ASTM D2256 ISO2062 Images
