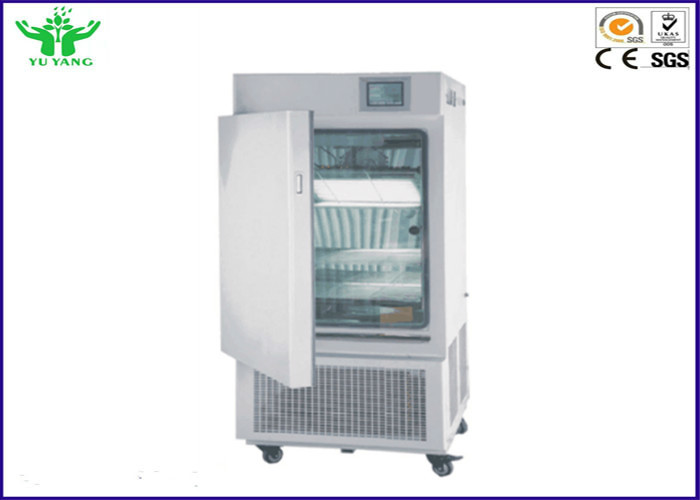

Environmental Test Chamber , RT-400 Deg C Laboratory Herb Dryer Machine
Product Description:
This Herb Drying Oven is suitable for the material anda product heating, solidification, drying and dehydration of drugs, chemicals, food, agricultural and sideline products, marine products, e.g. raw medicines, crude drugs, traditional Chinese medicines prepared in ready-to-use forms, extracturms, powders, granular drugs, packing bottles, pigments, dyestuffs, vegetables, melons and fruits, sausages, plastic resins, electronic components and coatings.
Main Features:
1) The hot sources can be steam, electricity, far infrared, or system+electricity. Customers can select one of the heat ways in accordance with practical conditions.
2) Temperature of operation: 50-140°C for steam heating, Maximum temperature will be 150°C
3) 50-500°C for electricity or far infrared
4) There are automatic and computer control systems for customers selection
5) The normal pressure of system will be 0.2-0.8Mpa(2-8kg/cm2)
6) The equipped power of electric heater will be 15kw calculated with Model 1 and the preational power to used will be 5-8w/h
7) If have special requirement, please indicate in order
8) The price of non-standard oven shall be discussed additionally
9) If the operation temperature is more than 140°C or less than 60°C, please indicate in order.
10) The size of drying troll and tray is standardized. They can be exchanged each other.
Characteristics:
1.High-quality cold rolling steel electrostatic spraying exterior.
2.Stainless steel or cold rolling sheet inner chamber, semicircular arcs at corners for easy cleaning, space between shelves is adjustable.
3.Temperature Control System can select pointer type or an intelligent temperature controller. Intelligent temperature controller with PID controller program, dual digital display, light-touch operation button, with function of timing of operation(0-9999min), fixed temperature operation, over-temperature alarm, automatically stop.
4.High quality heat isolation door with wide hollow tempered glass observation window, adjustable air-tight buckle lock and silicon rubber seal.
Optional accessories: Shelves, RS485 interface, printer, recorder, External Communication, remote control, Program temperature control device, wireless SMS alarm, USB data storage.
| SPECIFICATIONS |
| Model | Drying Capacity (KG/LOT) | Electric Power(KW) | Fan Power(KW) | Steam Consumed(KG/H) | Drying Trolly | Baking Trays | Dimensions (L*W*H )mm |
| HOD-O | 60 | 9 | 0.45 | 10 | 1 | 24 | 1380*1200*2000 |
| HOD-I | 120 | 15 | 0.45 | 18 | 2 | 48 | 2260*1200*2000 |
| HOD-II | 240 | 30 | 0.45*2 | 36 | 4 | 96 | 2260*2200*2000 |
| HOD-III | 360 | 45 | 0.45*3 | 60 | 6 | 144 | 2260*3200*2000 |
| HOD-IV | 480 | 60 | 0.45*4 | 80 | 8 | 192 | 4280*2200*2270 |
