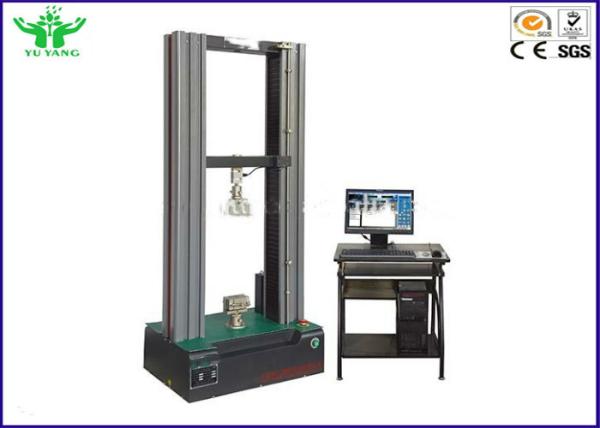

Servo Universal Tensile Testing Machine 2000KN Electro-Hydraulic Control
Applications:
Computer Control Servo Hydraulic Universal Testing machine is guaranteed to meet
ISO15579-2000, ISO679, ISO7438-1985, ISO6892, EN100021-1-2001, ASTM E8M, JIS Z2241-1998,
ISO75000-1, ISO4012, ISO10065 and other international and national specifications, which are suitable for tension, compression, bending, shear and other tests by adding different test fixture for metal and non-metal materials. It adopts hydraulic power pack to drive the piston in the oil cylinder to provide testing load. By using load cell and photoelectric encoder, the computer is timely showing the testing parameters like testing load, piston stroke, deformation of specimen and various kinds of testing curves etc. This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system is able to make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching , etc.
Load frame:
Rigid four-column & two -lead screw construction & compact design
Dual workspace design: Upper for tension, Lower for compression or bending tests
Movable lower crosshead providing exceptional ease of operation
Accurate force measurement through precision load cell
With open front hydraulic wedge grips for easy change of inserts and specimen loading
Integrated displacement photoelectric encoder
Cylinder mounted at the bottom of the machine
Machine Features:
1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;
Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN
51221.
2. Displacement measurement: adopts optical encoder with high accuracy and stability;
3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or
exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.
4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test
of varying-length specimens; The machine has four column and two screw with strong stiffness;
5. Clamp automatically: uses hydraulic grips with reliable holding;
6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston
and lower crosshead;
7. Test report can be acquired according to requirements of customers;
8. Management of test data: uses Access, Excel and other such kind software to communicate with
testing data base;
9. Stable performance with little influence of temperature and voltage;
10. Multiple Servo control mode : Load (Stress) Control; Displacement (Stroke) Control, Strain
(Deformation) Control. Load keeping, Displacement Keeping, Customized programming Control, etc
Specification
| Product Name: | Tensile Testing Machine | Usage: | Electro-Hydraulic Control |
|---|
| Capacity: | 2000KN | Load Resolution: | 1/200000 |
|---|
| Load Accuracy: | ≤±1% | Deformation Accuracy: | ≤±1 % |
|---|
| Max. Tensile Space: | 750mm | Power: | 380V±10% |
|---|
