Snap Button Pull Testing Equipment, Button Snap Pull Tester with FB-50k Force Gauge
Description:
ASTMD903 servo motor button pull tester , to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester applies for compression and tensile testing of small samples(special attachments are available).

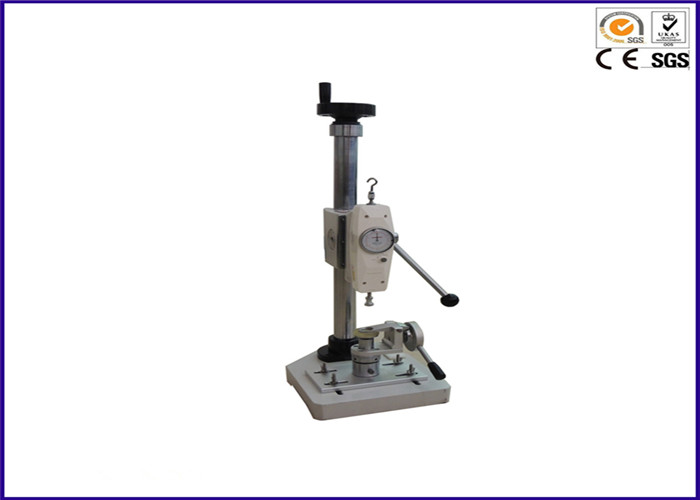

ASTMD903 servo motor button pull tester Consists of an upper snap clamp, a lower fabric clamp and force gauge mounted on a stand, a hand wheel on the bottom of snap tester which allows fine control with convenient operation.
The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of Snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Applique, Toggles, Hooks/Bars, and D-Rings, amongst others.Related testers(optional order)
The detachment of a snap or other part may be classed as small parts; Whilst broken small parts may require sharp point & sharp edge testing. As a result, additional testing equipment may be recommended, such as: Small Parts Cylinder, Sharp Point Tester, Sharp Edge Tester, Button Impact Tester, etc.
Parameters:
| 1. Tension stand:TNG46A |
| 2. Push and pull meter:TNG46B Imada FB 30 kg |
| 3. Concavity three-jaw button pinchers TNG46C |
| 4. Convexity two-jaw button pinchers TNG46D |
| 5. Long pinchers (6 inches) TNG46E |
| 6. Push rod bottom fabric fixture |
| 7. Three-jaw pinchers TNG46G |
| 8. Plane tensile pinchers TNG46H |

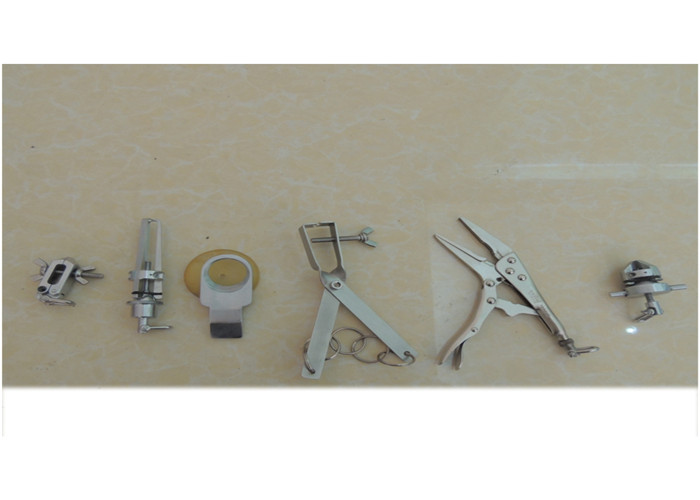

Accessories:

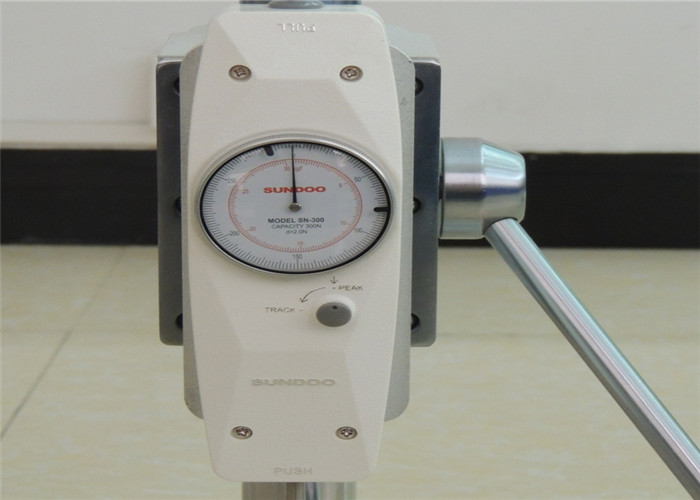

1. SANDOO Force Gauge FB-30K (300N, Resolution 2N, Accuracy +/-1%FS) - 1 Pc
2. Lower Fabric Clamp, Lever Armlocking - 1 Pc
3. Upper Stud Clamp - 1 Pc
4. Upper Snap Clamp -1 Pc
5. Three Pronged Clamp - 1 Pc
6. Two Pronged Clamp with screw - 1 Pc
7. Lower Grasp Button Kit - 1 Pc
8. Long Nose Vise Grip - 1 Pc
9. Calibration: 15 lbs Calibration Weight- 1 Pc
10. Safety Goggles - 1 Pc
11. Rubber Ring - 5 Pcs
12. Calibration Certificate - 1 Pc
13. Operation Manual - 1 Pc
Standards:
ASTM PS79-96, ASTM F963, EN 71-1, 16 CFR 1500.51-53, M&S P115A
| Snap pull tester |
| Weight 45Kg |
| Dimensions 230 x 280 x 750 mm(LxWxH) |
