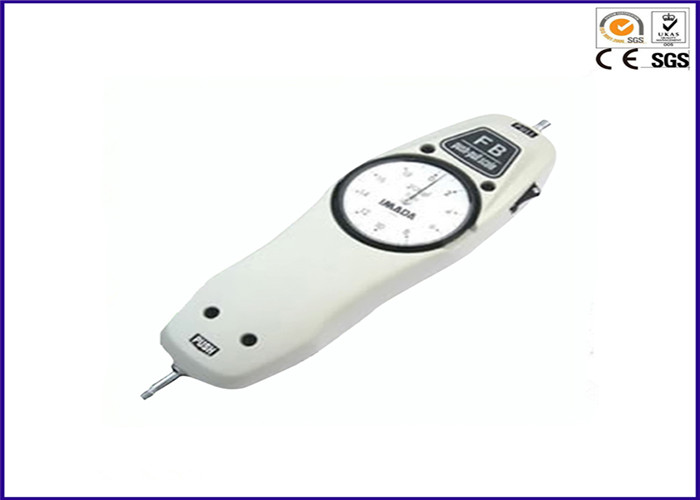

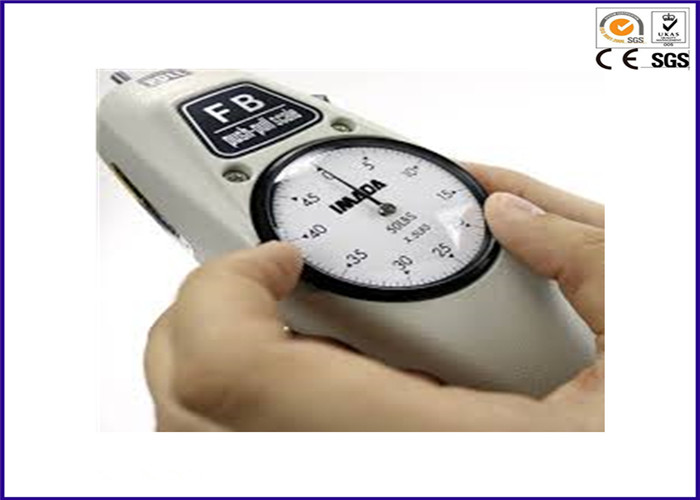

FB PS Imada Mechanical Force Gauge High Accuracy Pointer Instructions
Description:
FB/PS force gauges will withstand industrial environments and yet retain calibration for extended periods.
Ergonomic design makes it ideal for hand held use, or it can be mounted to a test stand. The Zero-Tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows you to observe transients or capture peaks. Many ranges are available to cover all of your measurement needs (also available in Newtons).
The FB series is sold in kits complete with force gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft.
Details:
a) Model: FB/FS manufacturer: Imada (Japan)
b) Simple, rugged, virtually maintenance free.
c) Retains a high degree of accuracy for extended periods.
d) Ergonomic, heavy-duty metal construction.
e) No batteries needed.
f) Intrinsically safe in hazardous environments.
g) Capacity up to 150 lbf (push and pull).
h) Overload capacity 165 lbf on all ranges.
i) Tare ring.
j) FB Ranges (Resolution) Accuracy: 0.3% F.S.
k) Real time and peak mode.
l) Full set of accessories and carrying case included.
Main Feature:
| 1. | Pointer instructions,reading easy,accurate,high precision; |
| 2. | Dual display of two units,no unit conversion; |
| 3. | Peak hold and the real value of the load are free to switch,easy to use; |
| 4. | Hand-held design,simple operation,and can be installed in all the types of tables to use,and match all kinds of clamps,which is facilitated to test various types of products. |
Technical Parameter:
| Model | Measuring Range | Resolution | Model | Measuring Range | Resolution | Model | Measuring Range | Resolution |
| FB-1k | 1kgf | 10gf | FB-10N | 10N | 0.1N | FB-5lb | 5lb | 0.05lb |
| FB-2k | 2kgf | 20gf | FB-20N | 20N | 0.2N | FB-10lb | 10lb | 0.1lb |
| FB-3k | 3kgf | 25gf | FB-30N | 30N | 0.25N | FB-20lb | 20lb | 0.2lb |
| FB-5k | 5kgf | 50gf | FB-50N | 50N | 0.5N | FB-30lb | 30lb | 0.25lb |
| FB-10k | 10kgf | 100gf | FB-100N | 100N | 1N | FB-50lb | 50lb | 0.5lb |
| FB-20k | 20kgf | 200gf | FB-200N | 200N | 1N | FB-100lb | 100lb | 1lb |
| FB-30k | 30kgf | 250gf | FB-300N | 300N | 2.5N | Aluminum shell|Peak hold function
Zeroing function|Annex:6 parts
Accuracy: 0.3%F.S |
| FB-50k | 50kgf | 500gf | FB-500N | 500N | 5N |
