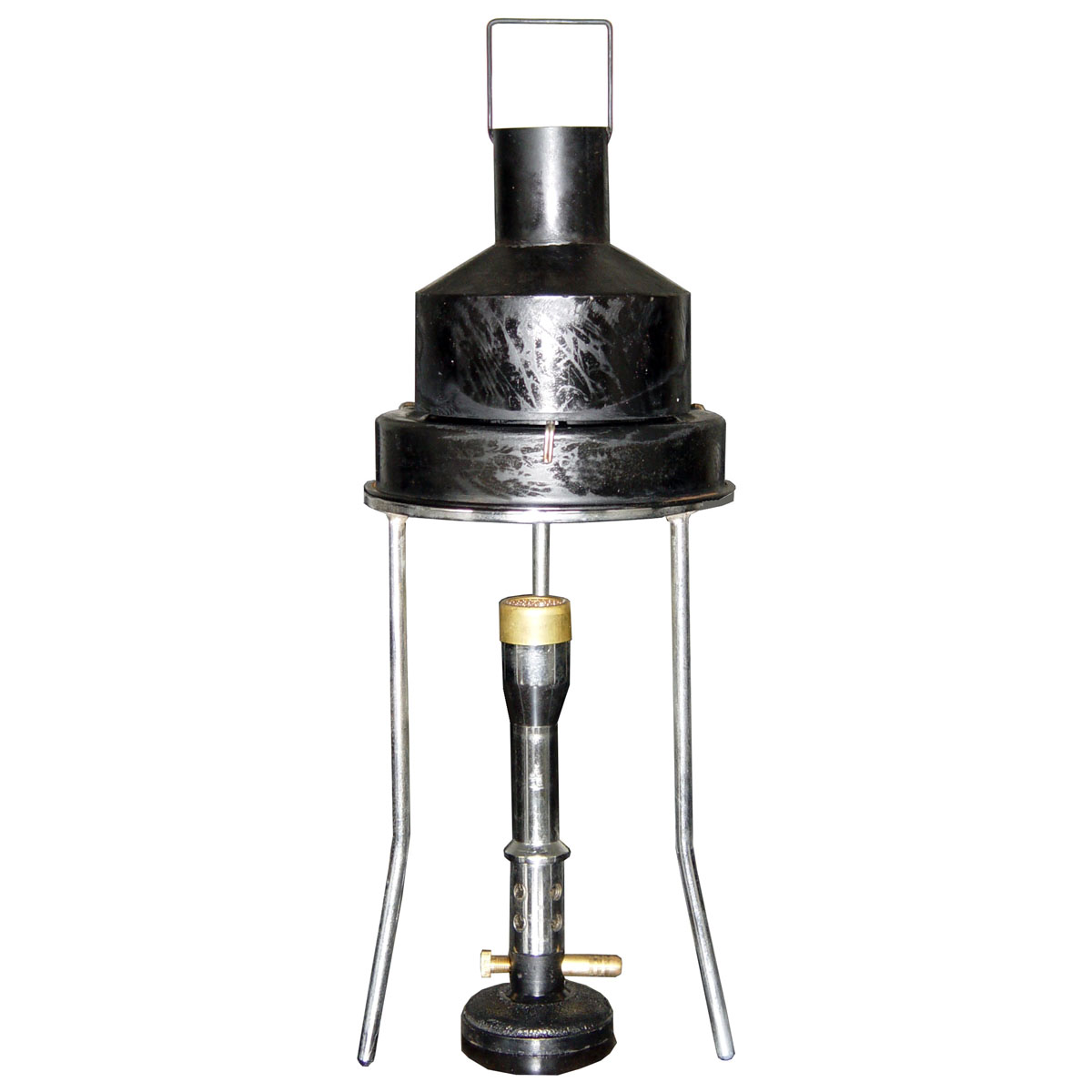

ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete

Name: ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete
Brand: YUYANG
Price: 600 USD

ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete Manufactures

Brand Name : YUYANG

Model Number : CRT-I

Certification : ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : USD600

Supply Ability : 100 Sets per month

Delivery Time : 15 days

Packaging Details : Plywood case

Keyword : Carbon Residue Tester

Warranty : 1 Year

Color : Black

Test standard : ASTM D189

Test method : Conradson

Condition : New

Contact Now

ASTM D189 Carbon Residue Tester by Conradson Method Oil testing Equipment

Summary

The carbon residue tester is designed and made as per national standard of People’s Republic of China GB/T268 Standard Test Method for Carbon Residue of Petroleum Products by Conradson Method. It is used to determine the amount of carbon residue of petroleum products after evaporation and paralysis, so as to check coke forming property of petroleum products. It can also meet requirements of ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.

I. Main technical features

1. The design can totally meet requirements of standard GB/T 268.

2. Simple design. Accessories complete. The test can be done as loon as equip civil gas.

II. Main technical specifications

1. Porcelain crucible: About 30ml.

2. Inner iron crucible: About (75±5)ml.

3. Outer iron crucible: About (190±10)ml with cover.

4. Supporter: Height: (250±10) mm Bore diameter: Ф (130±5) mm

5. Flame shield: Diameter of upper port:Ф(90±2)mm

Diameter of lower port:Ф(82±2)mm

6. Round iron cover: The height of underpart is (50～53)mm.

The height of cone in the middle is (25±2) mm.

There is a piece of iron wire as the fire bridge on the top.

The height is (50±3) mm. It is regarded as the indicator of max height.

7. Blowtorch: It adopts gas torch.

8. Dimension: Ф130mm×400mm

III.Accessories

No.	Item	Unit	Qty
1	Porcelain crucible	Piece	4
2	Inner iron crucible with a cover	Piece	1
3	External iron crucible	Piece	5
4	Outer iron crucible Cover	Piece	1
5	Nickel-chromium wire tripod	Piece	1
6	Flame shield	Piece	1
7	Roundiron cover	Piece	1
8	Blowtorch	Piece	1
9	Tripod	Piece	1

ASTM D189 Conradson Carbon Residue Apparatus Simple Design Accessories Complete
