PMCC-I Automatic Oil Analysis Equipment Pensky Martens Apparatus Easy Operate

Name: PMCCI Automatic Oil Analysis Equipment Pensky Martens Apparatus Easy Operate
Brand: Yuyang
Price: 2000 USD

PMCC-I Automatic Oil Analysis Equipment Pensky Martens Apparatus Easy Operate Manufactures

Brand Name : Yuyang

Model Number : PMCC-I

Certification : ISO

Place of Origin : China

MOQ : 1 Set

Price : USD2000/Set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100 sets per month

Delivery Time : 15 days

Packaging Details : Plywood case

Product name : Automatic Pensky-Martens Closed-Cup Flash Point Tester

Test method : Pensky-Martens Closed-Cup

Test standard : ASTM D93

Operation : Automatic

Color : Grey

Warranty : 1 Year

Power supply : AC(220±10%)V, 50Hz.

Size : AC(220±10%)V, 50Hz.

Maximum power consumption : 500W

Contact Now

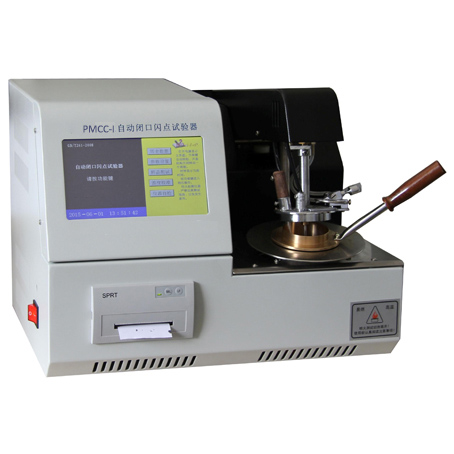

PMCC-I Automatic Pensky-Martens Closed-Cup Flash Point Test Equipment

Summary
PMCC-I Automatic Pensky-Martens Closed-Cup Flash Point Tester is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.

I. Main technical features
1. Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash temperature, sample number, atmospheric pressure and date can be set by prompt menu.
2. Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be modified.
3. 120 groups of data can be saved.
4. Automatically calculate the corrected flash point when the pressure differs from standard atmospheric pressure.
5. Differential detection. Automatic correct the system bias.
6. Automatically open cover, ignite, detect and print result.
7. Safe and easy to operate.

II.technical specifications

1	Power supply	AC(220±10%)V, 50Hz.
2	Flash point determination	Range: Ambient to 300℃. Meet requirement of GB/T 261-2008 Meet requirement of GB/T 261-2008 Resulotion: 0.1℃
3	Heating rate	Procedure A: (5～6)℃/min Procedure B: (1～1.5)℃/min
4	Stirring rate	Procedure A: (90～120)RPM, Procedure B: (250±10)RPM Automatic control and manually adjustable.
5	Igniting mode	Igniting source: gas(or other civilian fuels)Electric ignition. Gas flame diameter: 3.2mm～4.8mm
6	Ambient temperature	≤ 40℃
7	Relative humidity	≤ 80％
8	Maximum power consumption	500W
9	Overall dimension	410mm×360mm×310mm

III.Accessories

No.	Item	Unit	Qty
1	Oil Cup	Piece	1
2	Power supply wire (250V 6A)	Piece	1
3	Printer paper	Roll	1
4	Burning torch	Piece	1

PMCC-I Automatic Oil Analysis Equipment Pensky Martens Apparatus Easy Operate
