0.5% F.S Automatic Wire and Cable Elongation Tensile Testing Equipment 1200mm

Name: 05 FS Automatic Wire and Cable Elongation Tensile Testing Equipment 1200mm
Brand: YUYANG
Price: 1 USD

0.5% F.S Automatic Wire and Cable Elongation Tensile Testing Equipment 1200mm Manufactures

Brand Name : YUYANG

Model Number : YYL-012

Certification : ASTM D882, ASTM F1306, ASTM D1938, ASTM D2732, ASTM D1709, ISO 7765-1, ASTM D1894, ASTM D1424, ASTM D1922, ISO 1974,

Place of Origin : China

Supply Ability : 200 Sets Per Month

Delivery Time : 7-10 work days

Packaging Details : Strong Wooden Case

Accuracy : ±0.5%

Test Speed : 0-500mm/Min(Adjustable )

Max. Stroke : 1200mm (Excluding Fixture)

Resolution : 1/250, 000

Elongation Accuracy : 0.001mm

Power : 1phase, AC220V, 50Hz

Weight : 0-100Kg

Force Reading : Kgf, Ibf, N, Kn, T etc

Contact Now

0.5% F.S Automatic Wire and Cable Tensile and Elongation Testing Machine 1200mm

Product Description:

Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Features:

Item	Description
Frame capacity	500kg
Load cell brand	Germany brand load cell for high accuracy 500kg (5,10,50,100,200kg are optional)
Load accuracy	0.5% F.S

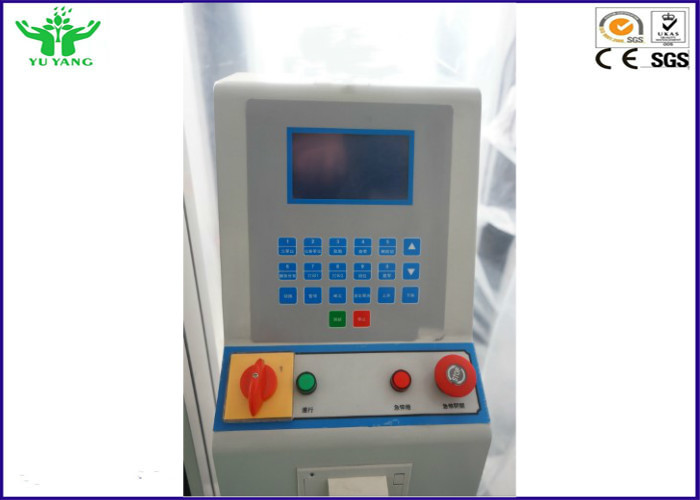

Control system	LCD with build-in printer /PC with windows 7 system
Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	1400mm including fixture
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Stanard:

Film/Plastic Film:ASTM D882: Tensile TestASTM F1306: Puncture TestASTM D1938: Trouser Tear TestASTM D2732: Thermal Shrinkage TestASTM D1709, ISO 7765-1: Free-Falling Dart MethodASTM D1894: Static and Kinetic Coefficients of FrictionASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

0.5% F.S Automatic Wire and Cable Elongation Tensile Testing Equipment 1200mm

Product Tags:

textile lab equipment

universal tensile machine

0.5% F.S Automatic Wire and Cable Elongation Tensile Testing Equipment 1200mm Images
