Ga111 Fire Testing Equipment For Upholstered Furniture And Subassemblies

GA111 NFPA266 Upholstered Furniture and Subassemblies Fire Characteristics Testing Equipment

Application:

The testing machine is mainly applied to the combustion test of upholstered furniture or its mode. It could measure heat release rate and total heat release, gas analysis, smoke transmittance.

Standard:

GB/T 2794-2012 Testing method for fire characteristics of furniture and subassemblies exposed to flaming ignition source

GB 20286-2006 Requirements and mark on burning behavior

of fire retarding products and subassemblies in public place

GA111-1995 Entity room fire test surface material

NFPA 266-1998 Upholstered Furniture, Subjected to Open Flame Ignition, Using a Large-Scale Oxygen Consumption Calorimeter

Main parameters:

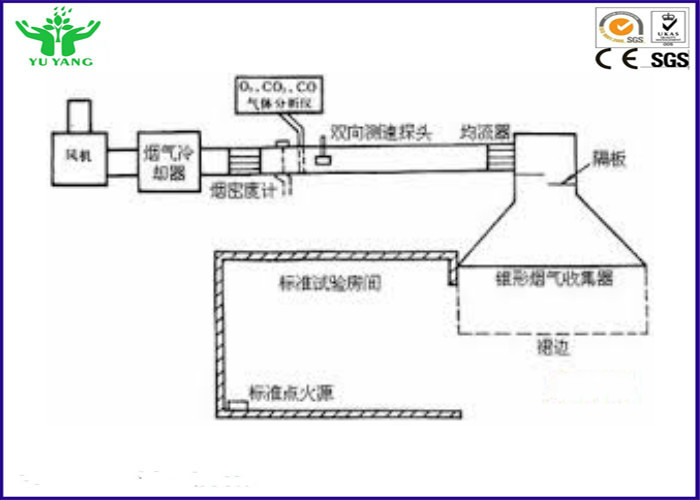

The equipment consists of ignition source, conical furnace, gas analysis system, smoke density test system, exhaust duct, gas cooler, fans, measuring device component, computer control and etc.

1. Special burner.

2. Automatically collect and process data and print test report.

3. Man-machine dialogue, easy to operate.

4. Oxygen measurement:

4.1 measurement range: 0-25%

4.2 signal output: 4-20mA;

4.3 response time T90: ≤3S;

4.4 environment temperature: 0-45 ℃;

4.5 Relative humidity: <90% (no condensation);

4.6 Linearity: <±0.1% O2

4.7 Zero drift: 0.05% O2 (one week);

4.8 Repeatability: <±0.02% O2

5. Carbon dioxide (CO2) measurement:

5.1 measurement range: 0-10%

5.2 repeatability: <±1%

Zero drift: ≤2%/ week

Range drift: ≤ 2%/ week

5.3 Linear deviation: < ±1%

5.4 Response time: T90 ≤5 seconds

6. Light measuring device: light source which imported quartz halogen lamp, nominal power: 100W nominal voltage: 12V nominal light return: 2000-3000Lm

7. Receiver, silicon photocell, 0% transmittance is no light, and 100% transmittance is without shade

smoke density test apparatus

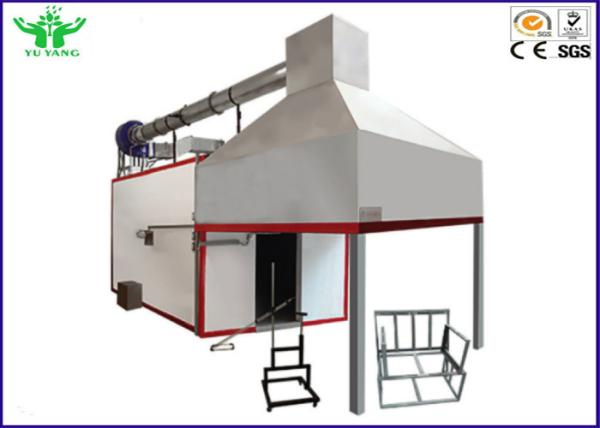

fire test chamber
