ASTM D1401 Herschel Emulsifier Water Separability Test Apparatus

  • 1
  • 2

Brand Name : YUYANG

Model Number : H1096

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD3000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 30 days

Packaging Details : Hardboard

Standards : GB/T7305,ASTM D1401, ISO6614

Temperature controlling range : ambient~100℃

Temp.controller : imported PID

Timing method : digital timer

Total power : 1500W

Working positions : 9

Heating : oil bath

Warranty : 1 Year

Contact Now

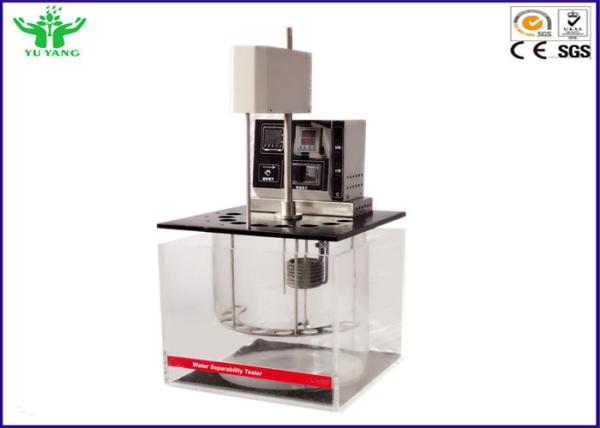

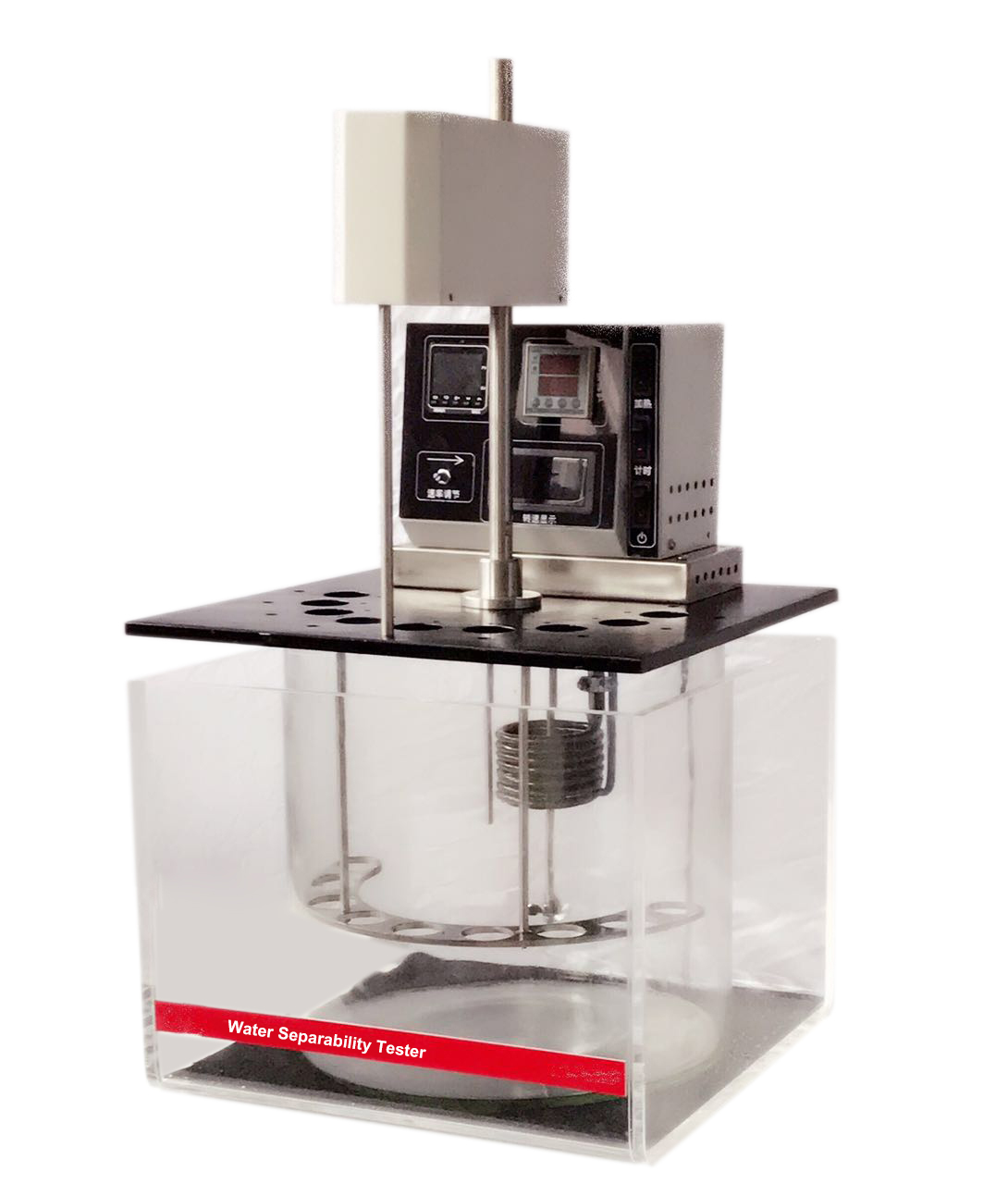

Herschel Emulsifier Water Separability Test Apparatus

The water separability apparatus is suitable to measure the water separability of Petroleum Oils and Synthetic Fluids.Fill certain amount of sample and distilled water,stir 5 minutes under certain temperature,record needed time for separation of emulsified liquid.After half hour or one hour,if the emulsified liquid doesn’t separate completely,or the emulsified layers doesn’t reduce 3mL or more,please record the volume of oil layer,water layer and emulsified layer at this moment.

I.Main features

1.It can measure water separability of petroleum oil,synthetic liquid and Herschel emulsifier.

2.This equipment includes stainless steel frame,control box,tank,and the stirring vane can be moved in column up and down.It can display stirring speed digitally.

3.Borosilicate glass tank,depth 300mm,fixed on the stainless steel rack with ceramic coating.

4.Aluminized lid,multi rotation position,can put sample column.One locating device can put the column under the blade of sample stirrer,which can avoid breaking for wrong locating.

5.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.

6.Stirrer is installed on the electrical heating bath

7.Heater is stainless steel

8.Sample stirrer is electronic

9.Digital speedometer can display stirring speed continuously.

10.Electronic timer can be stopped after stirring for 5 minutes.

11.Contact control box is very convenient.

12.Borosilicate glass column with 100ml graduation.

II.Technical specifications

1 Applicable standards

GB/T7305,ASTM D1401, ISO6614

2 Temperature controlling method imported PID digital display temperature controller
3 Temperature controlling accuracy

ambient~100℃±0.1℃

4 Heating method

oil bath

5 Timing method digital timer
6 Total power 1500W
7 Working unit 9 positions
8 Power supply

AC220V/50Hz
